mitkFootprint Class Reference

mitkFootprint - abstract class defines common interface for footprint More...

#include <mitkFootprint.h>

Inherits mitkObject.

Inherited by mitkFootprint1D, and mitkFootprint2D.

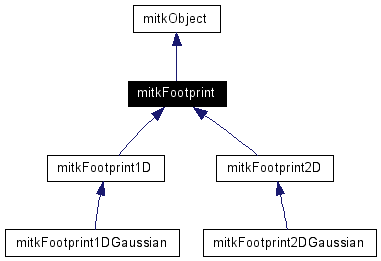

Inheritance diagram for mitkFootprint:

[legend]Collaboration diagram for mitkFootprint:

[legend]List of all members.

Public Member Functions
virtual void	PrintSelf (ostream &os)
void	SetRebuild (bool build)
bool	GetRebuild ()
virtual float *	EncodeFootprintTable ()
virtual float	DecodeFootprintTable (float x, float y)

---

Detailed Description

mitkFootprint - abstract class defines common interface for footprint

mitkFootprint is an abstract class that defines common interface for encoding and decoding of footprint table.

---

Member Function Documentation

virtual float mitkFootprint::DecodeFootprintTable (  float  x, float  y )  [inline, virtual]

Decode footprint table (each concrete class must implement this function). Parameters: x  Coordinate value in horizon axis. y  Coordinate value in vertical axis. Returns: Return the corresponding value in the footprint table. Reimplemented in mitkFootprint1DGaussian, and mitkFootprint2DGaussian.

virtual float* mitkFootprint::EncodeFootprintTable (   )  [inline, virtual]

Encode footprint table (each concrete class must implement this function). Returns: Return the entry of the footprint table. Reimplemented in mitkFootprint1DGaussian, and mitkFootprint2DGaussian.

bool mitkFootprint::GetRebuild (   )  [inline]

Get the status of building. Returns: Return true, the building is enabled. Return false, the building is disabled.

virtual void mitkFootprint::PrintSelf (  ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose. Parameters: os  The specified ostream to output information. Reimplemented from mitkObject. Reimplemented in mitkFootprint1D, mitkFootprint1DGaussian, mitkFootprint2D, and mitkFootprint2DGaussian.

void mitkFootprint::SetRebuild (  bool  build  )  [inline]

Set the status of building. Parameters: build  build = trueenable the rebuilding. build = falsedisable the rebuilding.

---

The documentation for this class was generated from the following file:

• mitkFootprint.h

---
