mitkRawWriter Class Reference

mitkRawWriter - a concrete writer for writing a volume to a single raw file(no any header information). More...

#include <mitkRawWriter.h>

Inherits mitkVolumeWriter.

Inheritance diagram for mitkRawWriter:

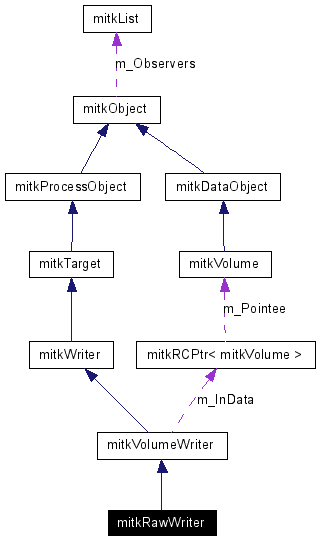

[legend]Collaboration diagram for mitkRawWriter:

[legend]List of all members.

Public Member Functions
virtual void	PrintSelf (ostream &os)
void	SetEndian (bool isBig=false)
void	SetBigEndian (bool isBig=true)
void	SetLittleEndian (bool isBig=false)
void	SetPlanarCfg (bool isColorByPlane)
void	SetTitleBytes (int n)

---

Detailed Description

mitkRawWriter - a concrete writer for writing a volume to a single raw file(no any header information).

mitkRawWriter writes a volume to a single raw file(no any header information). All the property of volume will lost, including the image width, height, image number, spacing information, etc. You can control the format of output file by setting the endian configuration, planar configuration and header size.

See also:

SetEndian

SetPlanarCfg

SetTitleBytes To use this writer, the code snippet is:

    mitkRawWriter *aWriter = new mitkRawWriter;
    aWriter->SetInput(aVolume);
    aWriter->AddFileName(filename);
    aWriter->Run();

---

Member Function Documentation

virtual void mitkRawWriter::PrintSelf (  ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose. Parameters: os  The specified ostream to output information. Reimplemented from mitkVolumeWriter.

void mitkRawWriter::SetBigEndian (  bool  isBig = true  )  [inline]

Provided for convenience, just the same as SetEndian().

void mitkRawWriter::SetEndian (  bool  isBig = false  )  [inline]

Set endian if depth per pixel is bigger than 8. Parameters: isBig  if the endian configuration is big endian (Mac)

void mitkRawWriter::SetLittleEndian (  bool  isBig = false  )  [inline]

Provided for convenience, just the same as SetEndian().

void mitkRawWriter::SetPlanarCfg (  bool  isColorByPlane  )  [inline]

Set planar configuration. Parameters: isColorByPlane  if the planar configuration is color-by-plane Note: Only used when channel number is bigger than 1. For RGB images, if it is color-by-plane, it's means the pixels should be stored as "R1 R2 R3 ... G1 G2 G3 ... B1 B2 B3 ...", otherwise "R1 G1 B1 R2 G2 B2 ..."

void mitkRawWriter::SetTitleBytes (  int  n  )  [inline]

Set number of bytes in title. Parameters: n  number of bytes in title Note: All the bytes in the title will be set to 00H. This title has nothing to do with the image and will be ignored when read.

---

The documentation for this class was generated from the following file:

• mitkRawWriter.h

---
