mitkRawReader Class Reference

mitkRawReader - a concrete reader for reading raw volume file(no header information). More...

#include <mitkRawReader.h>

Inherits mitkVolumeReader.

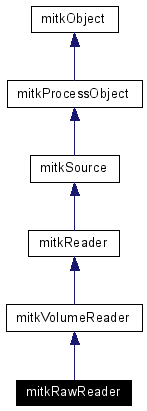

Inheritance diagram for mitkRawReader:

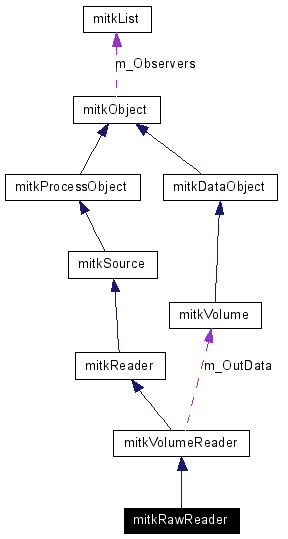

[legend]Collaboration diagram for mitkRawReader:

[legend]List of all members.

Public Member Functions
virtual void	PrintSelf (ostream &os)
	mitkRawReader ()
void	SetWidth (int w)
void	SetHeight (int h)
void	SetImageNum (int n)
void	SetSpacingX (float px)
void	SetSpacingY (float py)
void	SetSpacingZ (float pz)
void	SetChannelNum (int n)
void	SetTitleBytes (int n)
void	SetEndian (bool isBig=false)
void	SetBigEndian (bool isBig=true)
void	SetLittleEndian (bool isBig=false)
void	SetPlanarCfg (bool isColorByPlane)
void	SetDataType (int dataType)
void	SetDataTypeToFloat ()
void	SetDataTypeToDouble ()
void	SetDataTypeToInt ()
void	SetDataTypeToUnsignedInt ()
void	SetDataTypeToLong ()
void	SetDataTypeToUnsignedLong ()
void	SetDataTypeToShort ()
void	SetDataTypeToUnsignedShort ()
void	SetDataTypeToUnsignedChar ()
void	SetDataTypeToChar ()

---

Detailed Description

mitkRawReader - a concrete reader for reading raw volume file(no header information).

mitkRawReader reads a raw volume file(no any header information) to a volume. Because raw file doesn't has any header information, including width, height, image number, spacing information, etc. , you must set enough information using the series SetXXX functions. To use this reader, the code snippet is:

    mitkRawReader *aReader = new mitkRawReader;
    aReader->SetWidth(w);
    aReader->SetHeight(h);
    aReader->SetImageNum(d);
    aReader->SetSpacingX(sx);
    aReader->SetSpacingY(sy);
    aReader->SetSpacingZ(sz);
    aReader->SetDataType(dt);
    aReader->SetChannelNum(cn);
    aReader->AddFileName(filename); //Only require one file name
    //the above is the required information
    if (aReader->Run())
    {
        mitkVolume *aVolume = aReader->GetOutput();
        Using aVolume
    }

---

Constructor & Destructor Documentation

mitkRawReader::mitkRawReader (   )

Default constructor.

---

Member Function Documentation

virtual void mitkRawReader::PrintSelf (  ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose. Parameters: os  The specified ostream to output information. Reimplemented from mitkVolumeReader.

void mitkRawReader::SetBigEndian (  bool  isBig = true  )  [inline]

Provided for convenience, just the same as SetEndian().

void mitkRawReader::SetChannelNum (  int  n  )  [inline]

Set number of channel. Parameters: n  number of channel 1---gray image 3---RGB image 4---RGBA image

void mitkRawReader::SetDataType (  int  dataType  )  [inline]

Set the data type of these images. Parameters: dataType  the data type of these images, the value should be one of follows: MITK_CHAR (char) MITK_UNSIGNED_CHAR (unsigned char) MITK_SHORT (short) MITK_UNSIGNED_SHORT (unsigned short) MITK_INT (int) MITK_UNSIGNED_INT (unsigned int) MITK_LONG (long) MITK_UNSIGNED_LONG (unsigned long) MITK_FLOAT (float) MITK_DOUBLE (double)

void mitkRawReader::SetDataTypeToChar (   )  [inline]

Set data type to char.

void mitkRawReader::SetDataTypeToDouble (   )  [inline]

Set data type to double.

void mitkRawReader::SetDataTypeToFloat (   )  [inline]

Set data type to float.

void mitkRawReader::SetDataTypeToInt (   )  [inline]

Set data type to int.

void mitkRawReader::SetDataTypeToLong (   )  [inline]

Set data type to long.

void mitkRawReader::SetDataTypeToShort (   )  [inline]

Set data type to short.

void mitkRawReader::SetDataTypeToUnsignedChar (   )  [inline]

Set data type to unsigned char.

void mitkRawReader::SetDataTypeToUnsignedInt (   )  [inline]

Set data type to unsigned int.

void mitkRawReader::SetDataTypeToUnsignedLong (   )  [inline]

Set data type to unsigned long.

void mitkRawReader::SetDataTypeToUnsignedShort (   )  [inline]

Set data type to unsigned short.

void mitkRawReader::SetEndian (  bool  isBig = false  )  [inline]

Set endian if depth per pixel is bigger than 8. Parameters: isBig  if the endian configuration is big endian (Mac)

void mitkRawReader::SetHeight (  int  h  )  [inline]

Set image height. Parameters: h  image height

void mitkRawReader::SetImageNum (  int  n  )  [inline]

Set number of images. Parameters: n  image number

void mitkRawReader::SetLittleEndian (  bool  isBig = false  )  [inline]

Provided for convenience, just the same as SetEndian().

void mitkRawReader::SetPlanarCfg (  bool  isColorByPlane  )  [inline]

Set planar configuration. Parameters: isColorByPlane  if the planar configuration is color-by-plane Note: Only used when channel number is bigger than 1. For RGB images, if it is color-by-plane, it's means the pixels should be stored as "R1 R2 R3 ... G1 G2 G3 ... B1 B2 B3 ...", otherwise "R1 G1 B1 R2 G2 B2 ..."

void mitkRawReader::SetSpacingX (  float  px  )  [inline]

Set spacing information in x axis, the unit is mm. Parameters: px  the spacing (mm) in two adjacent voxels in x axis.

void mitkRawReader::SetSpacingY (  float  py  )  [inline]

Set spacing information in y axis, the unit is mm. Parameters: py  the spacing (mm) in two adjacent voxels in y axis.

void mitkRawReader::SetSpacingZ (  float  pz  )  [inline]

Set spacing information in z axis, the unit is mm. Parameters: pz  the spacing (mm) in two adjacent voxels in z axis.

void mitkRawReader::SetTitleBytes (  int  n  )  [inline]

Set number of bytes in title (header). These bytes will be skipped. Parameters: n  number of bytes in title (header) Note: This title has nothing to do with the image. If the file has a title, the number of bytes must be given so that the program can skip the title properly when reading the file.

void mitkRawReader::SetWidth (  int  w  )  [inline]

Set image width. Parameters: w  image width

---

The documentation for this class was generated from the following file:

• mitkRawReader.h

---
