mitkBMPReader Class Reference

mitkBMPReader - a concrete reader for reading BMP image files More...

#include <mitkBMPReader.h>

Inherits mitkVolumeReader.

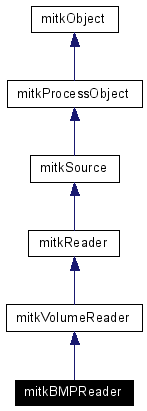

Inheritance diagram for mitkBMPReader:

[legend]Collaboration diagram for mitkBMPReader:

[legend]List of all members.

Public Member Functions
virtual void	PrintSelf (ostream &os)
void	SetSpacingX (float px)
void	SetSpacingY (float py)
void	SetSpacingZ (float pz)
void	SetSpacings (float s[3])

---

Detailed Description

mitkBMPReader - a concrete reader for reading BMP image files

mitkBMPReader reads a set of BMP image files to a volume. Because BMP file doesn't have the spacing information, you must set them using the SetSpacingX, SetSpacingY, SetSpacingZ functions. To use this reader, the code snippet is:

    mitkBMPReader *aReader = new mitkBMPReader;
    aReader->SetSpacingX(sx);
    aReader->SetSpacingY(sy);
    aReader->SetSpacingZ(sz);
    aReader->AddFileName(file1);
    aReader->AddFileName(file2);
    ...  ...  ...
    if (aReader->Run())
    {
        mitkVolume *aVolume = aReader->GetOutput();
        Using aVolume
    }

Warning:

All of the images must have equal width and height. Otherwise they can't form a volume. Now MITK only supports 8 bits and 24 bits BMP files.

---

Member Function Documentation

virtual void mitkBMPReader::PrintSelf (  ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose. Parameters: os  The specified ostream to output information. Reimplemented from mitkVolumeReader.

void mitkBMPReader::SetSpacings (  float  s[3]  )  [inline]

Set spacing information in x, y, z axis respectively, the unit is mm. Parameters: px  the spacing (mm) in two adjacent voxels in x axis. py  the spacing (mm) in two adjacent voxels in y axis. pz  the spacing (mm) in two adjacent voxels in z axis.

void mitkBMPReader::SetSpacingX (  float  px  )  [inline]

Set spacing information in x axis, the unit is mm. Parameters: px  the spacing (mm) in two adjacent voxels in x axis.

void mitkBMPReader::SetSpacingY (  float  py  )  [inline]

Set spacing information in y axis, the unit is mm. Parameters: py  the spacing (mm) in two adjacent voxels in y axis.

void mitkBMPReader::SetSpacingZ (  float  pz  )  [inline]

Set spacing information in z axis, the unit is mm. Parameters: pz  the spacing (mm) in two adjacent voxels in z axis.

---

The documentation for this class was generated from the following file:

• mitkBMPReader.h

---
